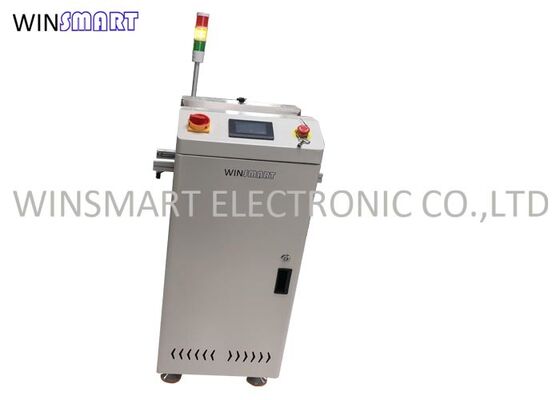

PLC Controlled PCB Flipper Machine with 180° Rotation for 460x350mm PCBs in SMT Production Lines

Nome da marca:	Winsmart
Número do modelo:	SMTPI-350
MOQ:	1 conjunto
preço:	USD1-10000/Set
Detalhes da embalagem:	Caixa de madeira compensada
Termos de pagamento:	L/C, T/T, Western Union

Informações Detalhadas

Descrição do produto

Informações Detalhadas

Lugar de origem:

China

Certificação:

Linha de produção SMT

Tamanho da placa de circuito impresso:

50*50-460*350mm

Aplicativo:

Linha de produção de montagem de PCB SMT

Serviço pós-venda:

Suporte técnico de vídeo, suporte on-line

Poder:

220/110V

Nome:

Máquina Flipper PCB

Habilidade da fonte:

5000 conjuntos por mês

Destacar:

PLC Control PCB Flipper Machine

180° Rotation PCB Loader Unloader

460x350mm PCB Size SMT Handling Equipment

Descrição do produto

SMT Production Line Rotate PCB 180° PCB Flipper Machine PLC Control

A PCB (Printed Circuit Board) flipper machine is an industrial device used in the assembly process of printed circuit boards. It is designed to flip or rotate PCBs during production, typically after one side has been assembled with components and needs to be flipped to allow assembly of the other side. This ensures components are placed correctly on both sides of the PCB.

PCB flippers are essential in automated surface mount technology (SMT) and wave soldering processes, where speed and accuracy are critical for production efficiency.

PCB Flipper Machine Specifications

Model No	SMTPI-350	SMTPI-460
PCB Size (mm)	(50x50)-(460x350)	(50x50)-(530x460)
Machine Size (mm)	500x820x1300	650x920x1300
Weight (kg)	150	180

Technical Parameters

Function	Used to invert PCB for next process
Cycle Time	Approx 15 seconds
Air Pressure	4-6 Bar
Power Supply	100-230V, 1PH, Max 300VA
Transport Height	900±20mm (or customized)
Transportation Direction	L to R or R to L
PCB Thickness	Min 0.6mm
Air Consumption	Max 15L/min

Primary Functions

The primary function of a PCB flipper machine is to rotate the PCB 180° (or another angle as required) to facilitate assembly of components on the reverse side. This flipping action is crucial for:

Allowing assembly of components on both sides of the board without manual intervention
Reducing labor-intensive processes, increasing efficiency and productivity
Ensuring boards are correctly oriented for the next stage of processing

Working Principle

The PCB flipper operates on mechanical manipulation and controlled motion principles:

Loading: The PCB is loaded into the machine, often via conveyor system
Flipping Mechanism: Using rollers, belts, or grippers, the machine picks up the PCB and rotates it through automatic mechanisms (pneumatic or motor-driven systems)
Controlled Rotation: The PCB is flipped 180 degrees in a controlled manner, ensuring minimal mechanical stress and preventing damage to mounted components
Unload/Transfer: After flipping, the PCB is transferred to the next assembly or inspection stage

PCB Transmission
