Detalhes do produto:
|
| Tamanho: | 355x320x563mm | Temp.: | 150°C |
|---|---|---|---|
| Uso: | Linha de produção de SMT | Passo: | 10mm |
| Quantidade do PWB: | 50pcs | NOME: | cremalheira de compartimento do PWB |
| Realçar: | Cremalheira de compartimento do armazenamento do PWB,cremalheira de compartimento de alumínio do PWB,linha de produção cremalheira de SMT de compartimento do PWB |
||

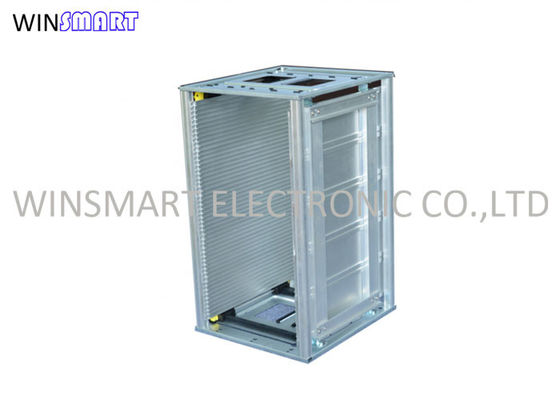

SMT ESD Magazine Rack
Full metal PCB magazine rack, sideboard is made by Aluminium material, high temperature for heated PCB , screw adjust type can be putted into oven and bear 300- 400 degree.C temperature ,compatible for SMT Loader or unloader automatic system.
Specification:
| Specifications | |
| Overall Size | 355x320x563mm |
| Style | High temperature resistance Heat Resistance type |
| Top&Bottom Boards | Metal |
| Surface resistance | 104Ω-109Ω |
| PCB capacity | 50pcs |
| Suitable PCB Size | 350x(50-250)mm |
| Side Guide Slot | depth 3.5mm, width 5mm, pitch 10mm |
| Adjustment Method | Adjustable side pannel,Screw adjustment,easy operation. |
Production:

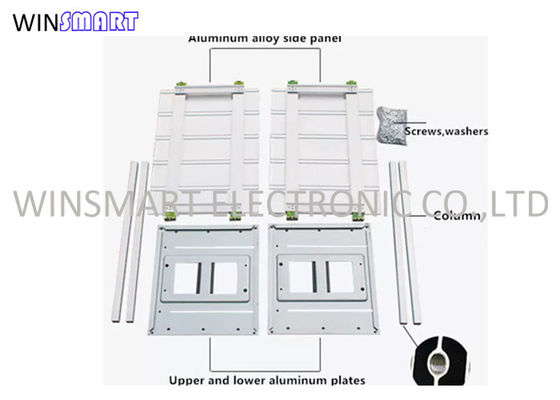

Details:
Package:
